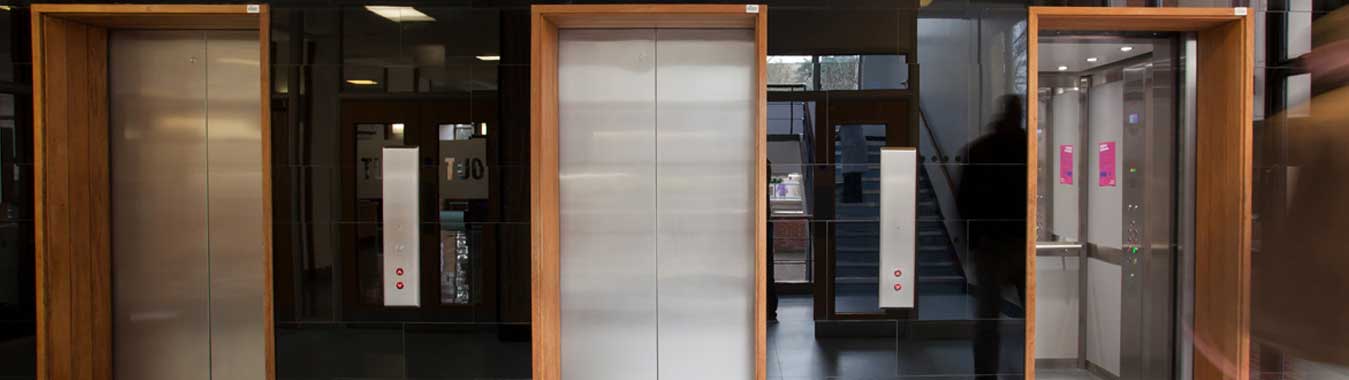

Passenger Elevators (Passenger Lifts)
We are passenger lift cabin manufacturer, exporter and distributor. This passenger lift cabin is designed keeping in consideration the interiors, collective control, passenger capacity and efficient working, etc. Our passenger lift cabin exporter quality products are created with absolute perfection with the help of our expert engineers and workforce. We are passenger lift cabin manufacturer, which take less space and are user-friendly. Our highly functional passenger lift cabin can be used in residential as well as commercial complexes. Our passenger lift cabin exporter quality products are easily install-able and manufactured as per international industry standards.
We manufacture and offer passenger elevators that are find their usage in residential buildings, offices and various other places. Durable in quality, these elevators assure maintenance free performance.
A Passenger lift is designed to carry people from point A to Point B vertically. The modern passenger lift is a simple means of transport within a building. Passenger elevators capacity is related to the available floor space. Generally passenger elevators are available in typical capacities from 4 TO 26 PASSENGERS and speed varying between 0.5 Meter/sec to 2.5 Meter/Sec.
Choice of passenger elevator typically depends on type of building (Commercial, Residential, Hotel, Mall, Housing society etc.,) and parameter such as passenger traffic movement. Budget involved is also a deciding factor between manual door and auto door passenger elevators. Beacon offers all types of passenger elevator whether auto door or manually operated doors with variety of aesthetic choices for interior, flooring & false ceiling.
A passenger elevator is designed to carry people and small packages. Passenger elevators capacity is related to the available floor space. Passenger elevators may be specialized for the service they perform, including: Hospital emergency (Code blue), front and rear entrances, double decker, and other uses. Residential elevators may be small enough for one person while some are large enough for more than a dozen. Wheelchair, or platform lifts, a specialized type of elevator designed to move a wheelchair 6 ft (2 m) or less, often can accommodate just one person in a wheelchair at a time with a maximum load of 750 lb (340 kg).Cars may be ornate in their interior appearance, may have audio visual advertising, and may be provided with specialized recorded voice instructions.
Generally passenger elevators are available in capacities from 1,000 to 6,000 lb (455 to 2,727 kg) in 500 lb (230 kg) increments. Generally passenger elevators in buildings eight floors or less are hydraulic or electric, which can reach speeds up to 200 ft/min (1.0 m/s) hydraulic and up to 500 ft/min electric. In buildings up to ten floors, electric & gearless elevators are likely to have speeds up to 300ft/min to 500 ft/min (2.5 m/s), and above ten floors speeds begin at 500 ft/min (2.5 m/s) up to 2000ft/min (10 m/s).
The concern for entrapping passengers requires all elevators to have communication connection to an outside 24 hour emergency service, automatic recall capability in a fire emergency, and special access for fire department use in a fire. Elevators are not an acceptable means of escape during a fire and should not be used by the public for this purpose.
Features:
• Alarm Button
• Car Call Cancellation at Terminal Stop
• Attendant
• Direction Arrow and Position Indicator on all Stops
• Home Landing
• Phase Failure and Phase Reversal Protection
• Repeated Door Closing in the event of Lock Failure
• Door Protection by Light Beams (2 Beams)
• Door Protection by Light Curtain
• Emergency Lighting
• Intercom Car to Machine Room
• Overload Indicator
• Automatic Rescue Device
• Compulsory Stop
• Duplex, Triplex, Quadruplex Control
• Direction Pre-announcing with Arrival Going
• Opposite Door Operation
TECHNICAL SPECIFICATIONS OF PASSENGER LIFT:
