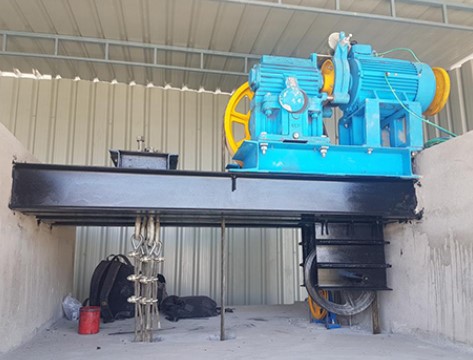

Precision Engineered Lift Machines & Gear Units
We are a distinguished manufacturer and supplier of Lift Machine that is applicable in construction and industrial sectors. Offered machine is manufactured using high grade components under the guidance of skilled professionals in compliance with the set quality standards.
The offered range of Lift Machine is highly appreciated for its sturdy construction, high performance, optimum strength, easy installation and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable price.
Our gear units are designed for special lift purposes where silence, smoothness and trouble-free operation are of the most necessary importance. Each gear unit offers maximum performance with minimum maintenance requiring only periodic oil checking.
IS 210
Gear Case Grade
BS 721
Design Standard
SAE-320
Recommended Oil
Key Machine Features
Advanced engineering and premium materials for reliable performance.
High-Quality Gear Case
Gear case is of high quality close grained cast iron confirming to IS 210 of high grade. Entire design is mainly based on BS 721 1963 to high accuracy.
Precision Worm & Gear
Worm made from high quality hardened steel generated, ground & super finished with imported worm & gear cutting machines. Worm wheel from cast nickel phosphor bronze.
Optimal Oil Circulation
Special care is taken for oil circulation so that ample quantity of oil reaches to all sleeve bearings imparting longer life with minimum maintenance.
Detailed Specifications
Our lift machines are designed for special lift purposes with the following specifications:
-
High-Quality Close Grained Cast Iron Gear Case Confirming to IS 210 of high grade with entire design based on BS 721 1963.
-
Hardened Steel Worm Generated, ground & super finished with imported worm & gear cutting machines.
-
Cast Nickel Phosphor Bronze Worm Wheel Confirming to BS 1400. PB-2 rim moulded with cast iron centre.
-
Sleeve Bearings & Angular Contact Ball Bearings Used on worm shaft with angular contact ball bearings for thrust load.
-
Optimal Oil Circulation Ample quantity of oil reaches all sleeve bearings imparting longer life.
Technical Summary
- Gear Case: Close Grained Cast Iron (IS 210)
- Design Standard: BS 721 1963
- Worm: Hardened Steel (Ground & Super Finished)
- Worm Wheel: Cast Nickel Phosphor Bronze (BS 1400)
- Bearings: Sleeve + Angular Contact Ball
- Recommended Oil: SAE-320
Technical Specifications
Detailed specification table for elevators machine.
| Parameter | Specification |
|---|---|
| Gear Case Material | Close Grained Cast Iron (IS 210) |
| Design Standard | BS 721 1963 |
| Worm Material | High Quality Hardened Steel (Generated, Ground & Super Finished) |
| Worm Wheel Material | Cast Nickel Phosphor Bronze (BS 1400) - PB-2 Rim |
| Bearings | Sleeve Bearings + Angular Contact Ball Bearings |
| Backlash | Limited Backlash for Lift Operation |
| Oil Circulation | Special Care for Optimal Oil Circulation |
| Recommended Oil | SAE-320 |
| Maintenance | Minimum Maintenance - Periodic Oil Checking Only |
| Operation | Silent, Smooth & Trouble-Free |
| Power Supply | 3 Phase, 415V, 50Hz AC |
| Warranty | 1 Year Comprehensive + Lifetime Paid Maintenance |
* Specifications may vary based on site conditions and customer requirements. Contact our technical team for customized solutions.
